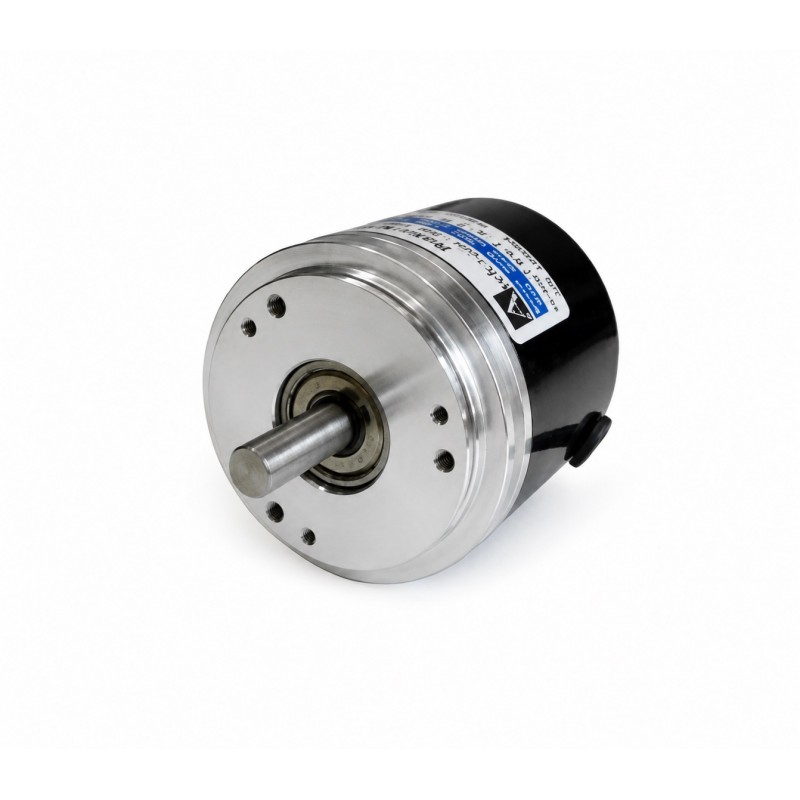

Rotary magnetic encoder ARS-S-58-2048

Measuring Type

Magnetic

Resolution

Different options from 1 to 4096 pulses

Max Operating Speed

3000 RPM

Output Frequency

300 kHz

Supply Voltage

10 … 30 VDC or 5 VDC

Current Consumption

50 mA nominal

Output Type

Push pull, TTL Line Driver, Open Collector

Output Signals

A, /A, B, /B, Z, /Z

Input Current

100 mA max (per channel)

Operating Temperature

-25…+85 °C

Storage Temperature

-40…+85 °C

Electrical Connection

5 or 8 x 0,14 mm2 shielded cable
socket, M12 / 8 pin, M16 / 8 pin, M23 / 12 pin

Body Diameter

58 mm

Shaft Diameters

6, 8, 10, 12 or 14 mm

Protection Class

IP54

Material

Body: Aluminum
Shaft: Stainless Steel
