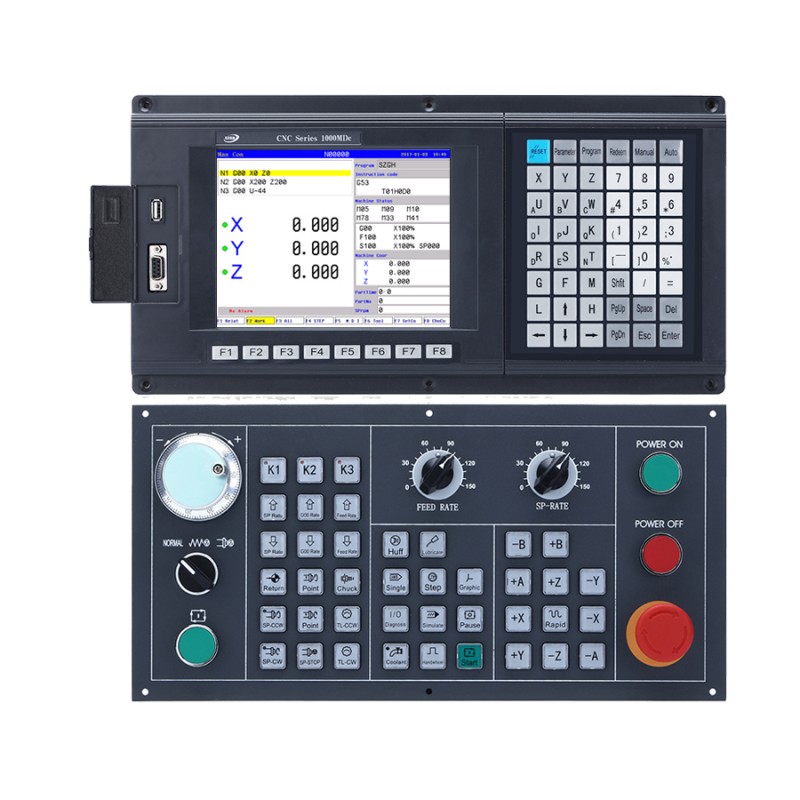

CNC control panel SZGH-1000MDb-1000-3

• The three axes of X,Y,Z control, three axes linkage movement.
• 2ms interpolation cycle,1um precision.
• 5MHz Output Pulse Frequency, Maximum speed: 300m/min,Feeding speed: 150m/min.
• Multiple function,it can realize the drilling/boring,roughing of roun groove/rectangle groove,finishing of full circle/rectangle,continous drilling of straight line/rectangle/arc etc.
• Support Macro function, PLC ladder function, and 3 D teaching function, ATC.
• Memory Capacity: 128MB,User Store Room: 110MB.
• 8.4 inches(800*600) real color LCD displayer.
• Support Metric system/Inch System,with function of auto charfering.
• Display in Chinese and English,which can be selected by parameter.
• With USB interface,support USB file processing,software upgrade.
• DNC in high speed,realize part program real-time transmission processing.
• Analog voltage output of 0V~10V in two channels,support two-spindle control.
• Support external MPG.
• Basic I/Os: 56*40, 40*32 can be edited freely.
• Built-in standard PLC program,and can be customized edited according to customer's requirements.
• High anti-jamming switch power(220VAC -> DC 24V&5V)
• Support ATC function

Dimensions:
