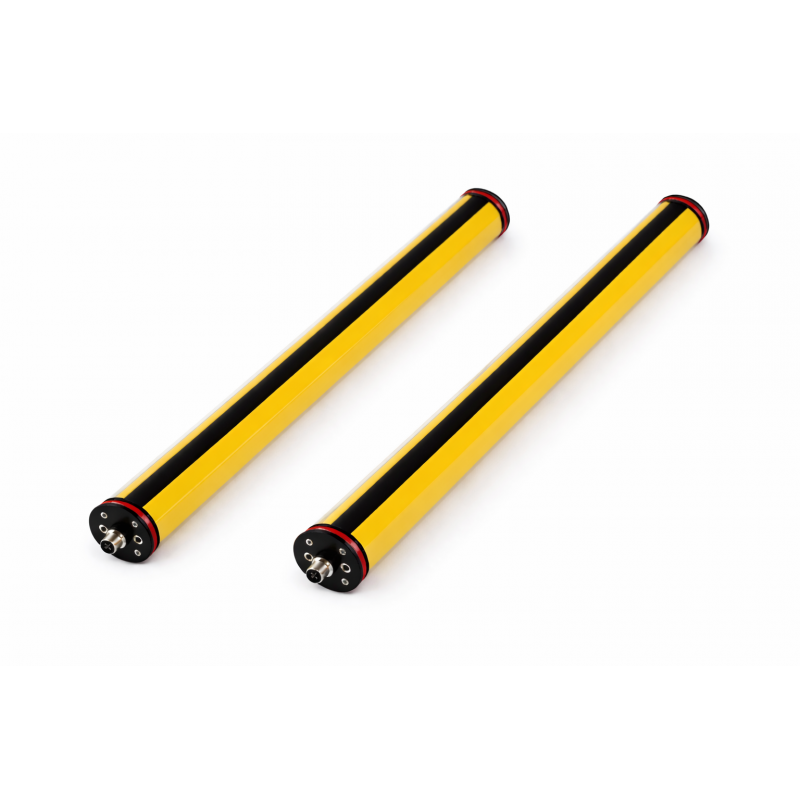

Safety light curtain M-QRF-28-80-2160mm
protection high: 2160mm
Security Policy
Delivery Policy
Return Policy
| Model | M-QRF-28-80-2160 |
| Height of protection | 2160mm |
| Total height | 2258mm |
| Resolution | 80mm |
| Number of beams | 28 |
General characteristics of the M-QRF series:
| Curtain resolution | 10 mm, 20 mm, 30 mm, 40 mm, 80 mm, 200 mm |
| Detection accuracy | 18 mm, 28 mm, 38 mm, 48 mm, 88 mm, 208 mm |
| Number of beams | 6-72 |
| Detection range | 30 ~ 3000 mm, 30 ~ 6000 mm |
| Response time | ≤15 ms |
| Ambient light resistance | 10,000 lux (angle of incidence 5°) |
| Dimensions | 36mm x 36mm x L mm (L is the length of the transmitter/receiver), 50mm x 50mm in the lampshade |
| Protection class | IP68 |
| Controller | QCA, QCA2 |
| Supply voltage | DC12/24 V |
| Power consumption | ≤200 mA |
| Output type | PNP NC, PNP NO, NPN NC, NPN NO |
| Light source | Modulated infrared LED |
| Connection method | Round aviation socket, with special connection cable, 7-wire transmitter, 7-wire receiver |
| Housing material | Aluminum alloy, End cap: ABS reinforced nylon |
| Ambient temperature | Operation: -10 ~ +40°C, Storage: -25 ~ +55°C |
| Ambient humidity | Operation: 35~85% RH, Storage: 35~95% RH |
Certificates:
CE TUV: No.E8A 104143 0001 Rev.00
ROHS: No. BSTDG180811032001CC
CE TYPE 4: No. ICR Polska/VC/HS221222
UL: No. 4790783741.1-S
ISO: No. HIC180327. GB/T 19001-2016/ISO 9001:2015
Cat 4 Pld
Dimensions:
L= 98mm + protection height
