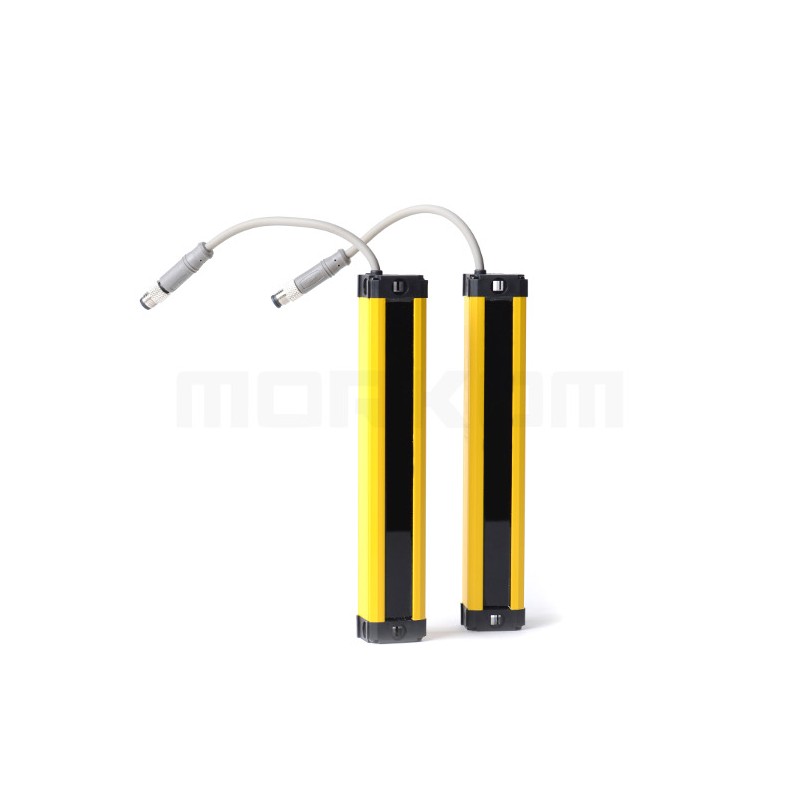

Safety light curtain M-FT10-08-70 slim
finger protect
protection high: 70mm
Security Policy
Delivery Policy
Return Policy
Safety light curtain M-FT10-08-70
Specification:
|
Beam number |
8 |
|
Beam pitch |
10mm |
|
Protect high |
70mm |
|
Total length |
105mm |
|
Detect distance |
0.3-6m |
Technical data FT series:
| Resolution | 10mm | 14mm | 20mm | 40mm |
| Accuracy check | 18mm | 22mm | 28mm | 48mm |
| Beam number | 8, 10…200 | 6, 8…200 | 6, 8…200 | 4, 6…200 |
| Protection high | Resolution x (beam number -1) | |||
| Detection distance | 30-3000mm, 30-6000mm | |||
| Response time | ≤ 15ms | |||
| Anti light interference | 10000 Lux | |||
| Dimensions | 25 x 23 x L (L is length of light emitter/receiver) | |||
| Protection class | IP65 | |||
| Synchrnization | Optical | |||
| Controller | QCA, QCA2 | |||
| Power supply | DC12/24, AC230V (relay output) | |||
| Consumpiton current | ≤ 200mA | |||
| Output | NPN/PNP | |||
| Output state | ON (green light) | |||
| Indicator light | Emitter: power indication (red); Receiver: output indicator (green), shading (red) | |||
| Light source | LED | |||
| Connection mode | Circular aviation socket with special connecting cable, 3 wires of emitter and 5 wires of receiver | |||
| Shell material | Aluminium, ABS | |||
| Environmental light resistance | Incandescent light: illumination of the receiving surface 3000Lux, sunlight: illumination of the receiving surface 10000Lux | |||
| Ambient temperature | -10℃ - +40℃ | |||
| Ambient humidity | 35-85% | |||
Dimensions:
