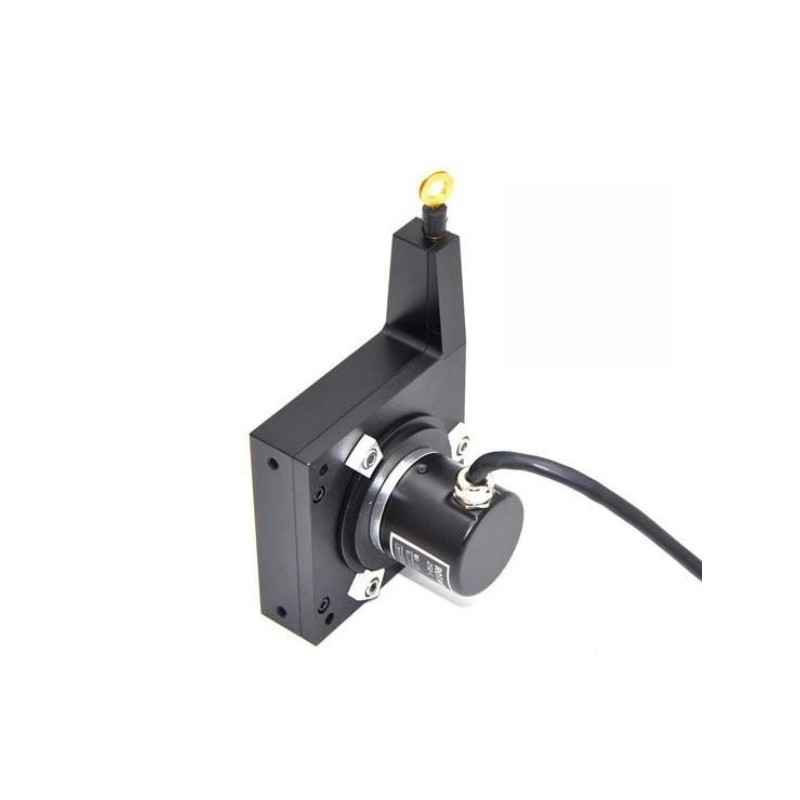

Draw wire sensor MELS-25 1000

MELS-25 1000
Rating

Draw-wire encoder MELS-25 1000

Output
zł1,447.15
Quantity



Security Policy



Delivery Policy



Return Policy

Description

Technical data:

Working range

0~1000mm

Encoder connection

Pure copper precision adaptive coupling

Thickness of cable box

25mm

Steel wire rope

316 Plastic coated steel wire rope/non-plastic coated steel wire rope

Measuring wheel circumference

230.4044mm (0.8mm steel wire rope)

Wire rope diameter

0.8mm 1.0mm (optional)

Shell material

Aluminum alloy

Outlet tension

4N

Maximum speed

5000mm/s

Protection level

IP67

Working Tem.

-25-85℃

Working life

1.5 million reciprocating cycles

Output signal

Resistance, 0-5V, 0-10V, 4-20mA

Working voltage

5V, 5-24V, 10-30v

Linear accuracy

0.05% F.S.


Dimensions:

Product Details
MELS-25 1000
