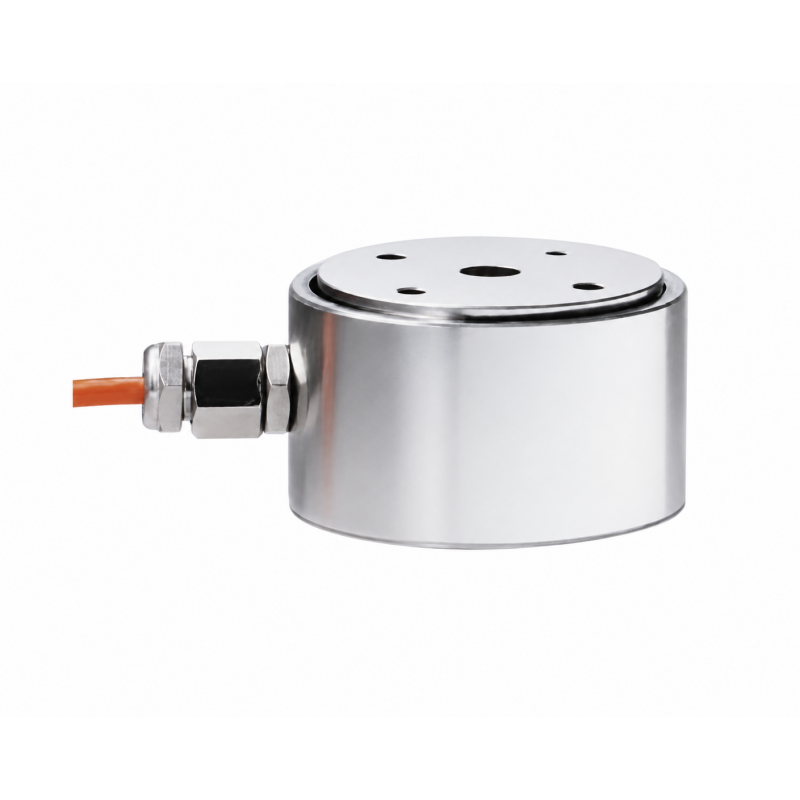

Pull pressure sensor MZ-101 100kg

Rated quantitative schedule

Kg

0-100

Output sensitivity

mV/V

2.0 +-0.05

Zero point output

%F.S.

+-2

Non-linear

%F.S.

0.05

lag

%F.S.

0.03

Repeatability

%F.S.

0.03

Creep (30 min)

%F.S.

0.03

Temperature sensitivity drift

%F.S./10°C

0.03

Zero temperature drift

%F.S./10°C

0.05

Response frequency

Hz

1k

Material

stainless steel

impedance

Ω

350

Insulation resistance

MΩ/100V DC

≥5000

Use voltage

V

5-15

Operating temperature range

°C

-20-80

Safety overload

%R.C.

150

Extreme overload

%R.C.

200

Cable line specifications

m

φ 3x2m

Cable limit pull force

N

98

TEDS

selectable
