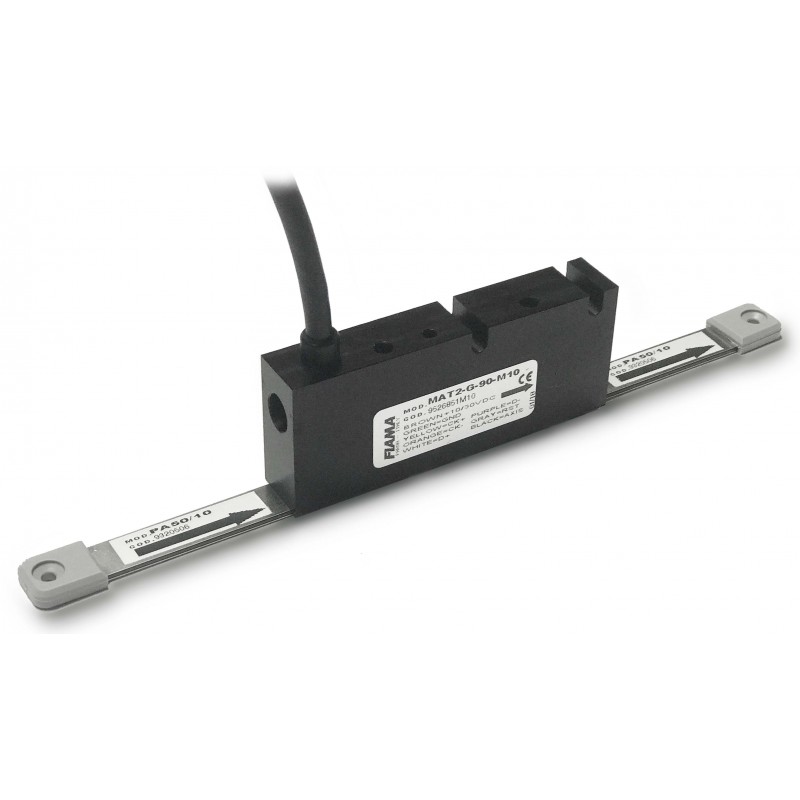

Absolute transducer MAT2

MAT is an absolute position transducer for linear measures without contact with a measure range up to 40 meters: it has to be combined with the absolute magnetic band PA50/10.

 -Running on the band, the sensor produces a signal which, properly amplified and worked out, is changed into an absolute position signal-.
The measure transducer integrates in the same device a sensor sensible to magnetic fields, an electronic signals conversion circuit and an output stage.
The most important feature is that this sensor «always keeps the quota», it means that is possible to move the sensor also without power supply and without loosing the quota. There are available two inputs to define the zero-setting and the direction.

The data exchanging is made through protocol SSI with format Gray or Binary.

- Magnetic Band PA50/10: the band consists of a plastic-ferrite strip carried by a stainless steel band with two magnetic traces, one with alternate poles of 5 mm pitch, the other with an univocal binary.

This system is suitable for a large number of applications within industry: guides and linear transmission members, pneumatic and oil-pressure cylinders, handling systems, automatic shearers, etc.: in any situations where is necessary an absolute, accurate and repeatable measure without contact and wear-proof.
It can goes with display F1XA (reading range –99999, +999999) with interface SSI.

Transducer MAT2

Tape PA50/10

Dimensions:
