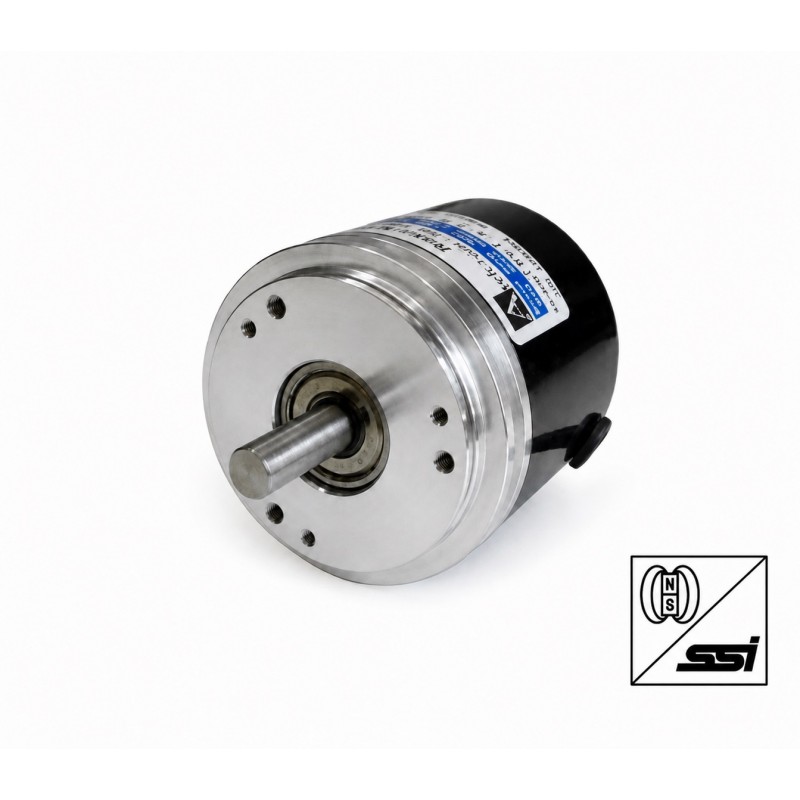

Rotary magnetic encoder ARS-S-50-SSI
Security Policy
Delivery Policy
Return Policy
resolution: 12 bit
General characteristics of the ARS-S-SSI series:
|
Measuring type |
Magnetic |
|
Resolution |
12 bit |
|
Encoding |
Gray |
|
Output signal (protocol) |
12 bit + 1 stop bit |
|
Power supply |
5 - 24 VDC |
|
Measuring range |
0° ... 360° |
|
Frame format |
MSB First - (12 bit position) + (1 stop bit) - LSB |
|
Accuracy |
+- %0.25 |
|
Max. operating speed |
3000 RPM |
|
Operating temperature |
-40…+85 °C |
|
Storage temperaturę |
-40…+85 °C |
|
Max. cable length |
13m @2 Mhz, 44m @1 Mhz, 85m @600 Khz, 300m @200 Khz |
|
Housing diameter |
50 mm |
|
Shaft diameter |
6, 8 lub 10 mm |
|
Protection class |
IP54 |
|
Material |
Body: Aluminum |
SSI timing diagram
Dimensions (cable from backside)
Dimensions (cable from side)
Dimensions (M16 socket)
Product code
