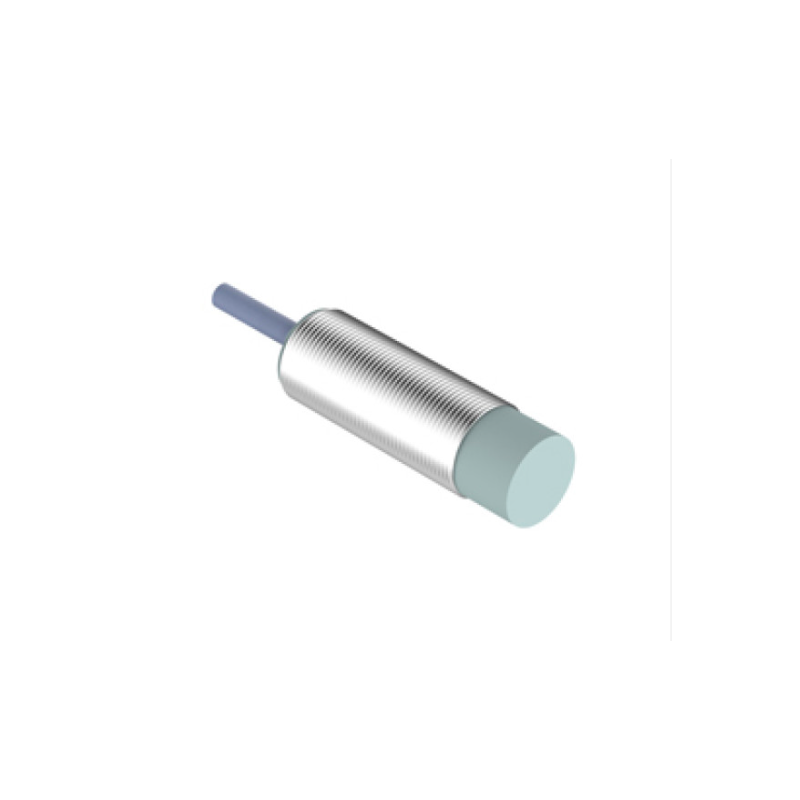

Inductive proximity switch LR18-08PO-ZBA-3A-H
Security Policy
Delivery Policy
Return Policy
Technical data:
|
Model |
LR18-08PO-ZBA-3A-H |
|
Cable |
Non-shielded |
|
Sensing distance |
8mm |
|
Output |
PNP /NO |
|
Sensing surface material |
PBT |
|
Shell material |
Nickel-plated copper |
|
Indicator light |
LED light |
|
Working voltage |
10-30 VDC |
|
Diameter and length |
18*55mm |
|
No load current |
< 10mA |
|
Sensing surface material |
150mA |
|
Leakage current |
< 0.01ma |
|
Voltage drop |
< 1.5V |
|
Switching frequency |
700HZ |
|
Response time |
< 0.5ms |
|
Switch hysteresis |
< 15% (SR) |
|
Repeatability |
< 3.0% (SR) |
|
Protection level |
IP67 |
|
Operating temperature |
- 25 ° C - + 70 ° C |
|
Temperature drift |
< 10% (SR) |
|
Short circuit protection |
Yes |
|
Reverse polarity protection |
Yes |
|
Overload protection point |
180mA |
|
Standard line length |
2 meters |

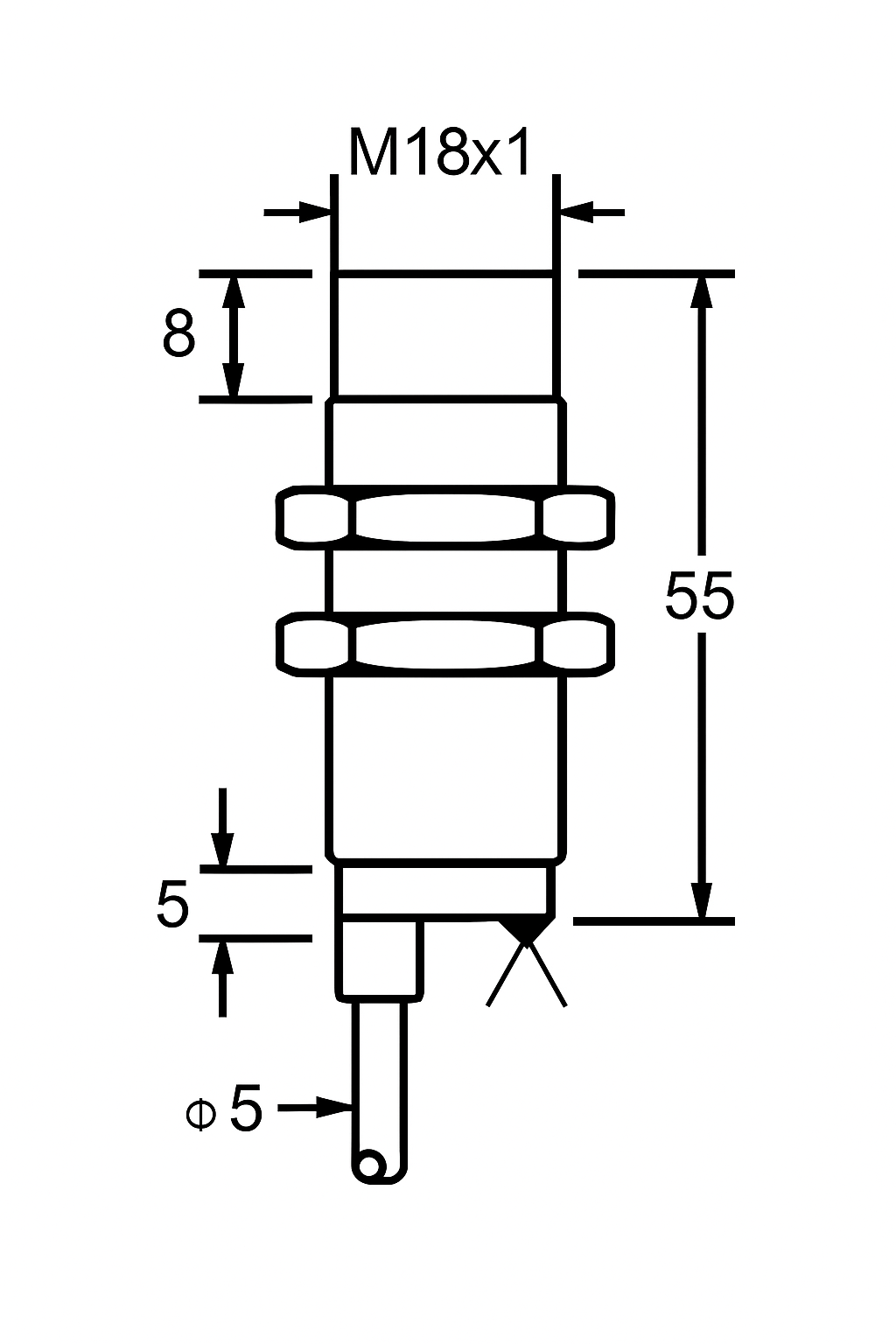

Dimensions:
Available variants (price depends on modification and may vary from model to model)
