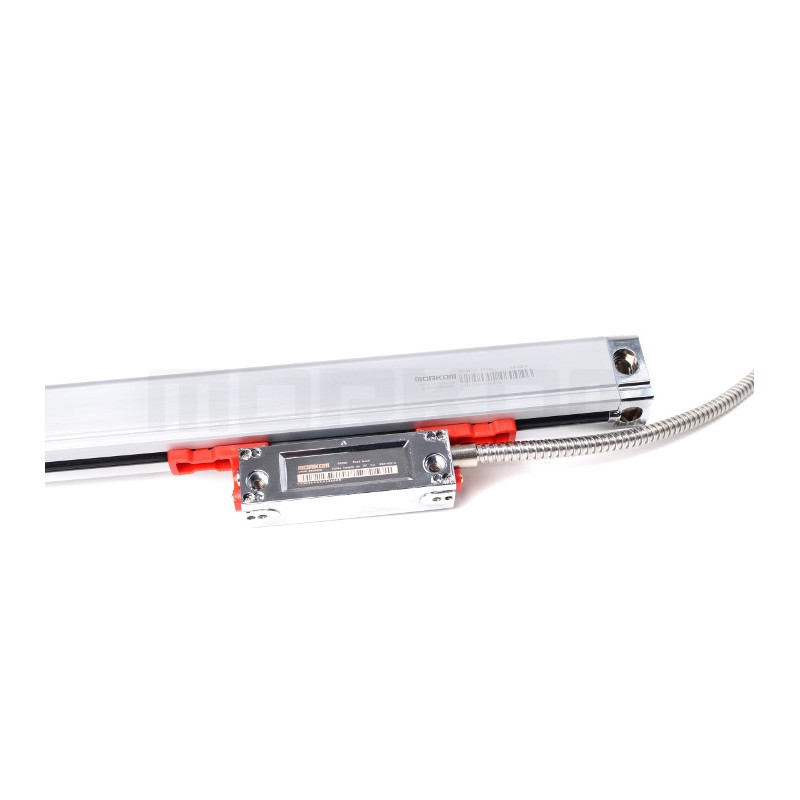

Linear scale MORKOM KA300-170mm
measuring length: 170mm
General characteristics:
Signals: A/A, B/B, Z/Z
Output: 5V TTL or RS-422A
Resolution: 0.005mm or 0.001mm
Accuracy: ± 3 μm/m / ± 5 μm/m
Double sealing
High shock and vibration resistance
Easy to assemble
Compact aluminum housing
Typical applications:
- CNC machining centers,
- lathes, milling machines, drills, grinders,
- electric discharge machines (EDM electrical discharge machines),
- sheet metal processing machines,
- welding equipment,
- benders,
- industrial robots,
- machines for processing wood, glass, plastics,
- e.t.c.
Technical data:
|
Resolution |
5µm or 1µm |
|
Output |
TTL/RS422 |
|
Output signals |
A/A, B/B, Z/Z |
|
Grating pitch |
20 µm |
|
Power supply |
5V |
|
Reference point |
Up to 1m, reference mark every 50 mm, from 1 meter and above, reference mark every 100 mm |
|
Accuracy |
+/- 3 µm / +/- 5 µm |
|
Max. speed |
120 m/min |
|
Protection class |
IP55 |
|
Cable length |
3 mb |
|
Working temperature |
-10°C ÷ +50°C |
|
Storage temperature |
-40°C ÷ +50°C |
|
Connection |
Signal: D-SUB 9 pin małe socket |
|
Housing material |
Aluminium |
|
Dimensions |
Drawing |
Dimensions:
L0: measuring length
L1: distance between mounting holes
L2: entire length
L1=L0+90mm
L2=L0+106mm
