Linear transducer LBC 75mm
Security Policy
Delivery Policy
Return Policy

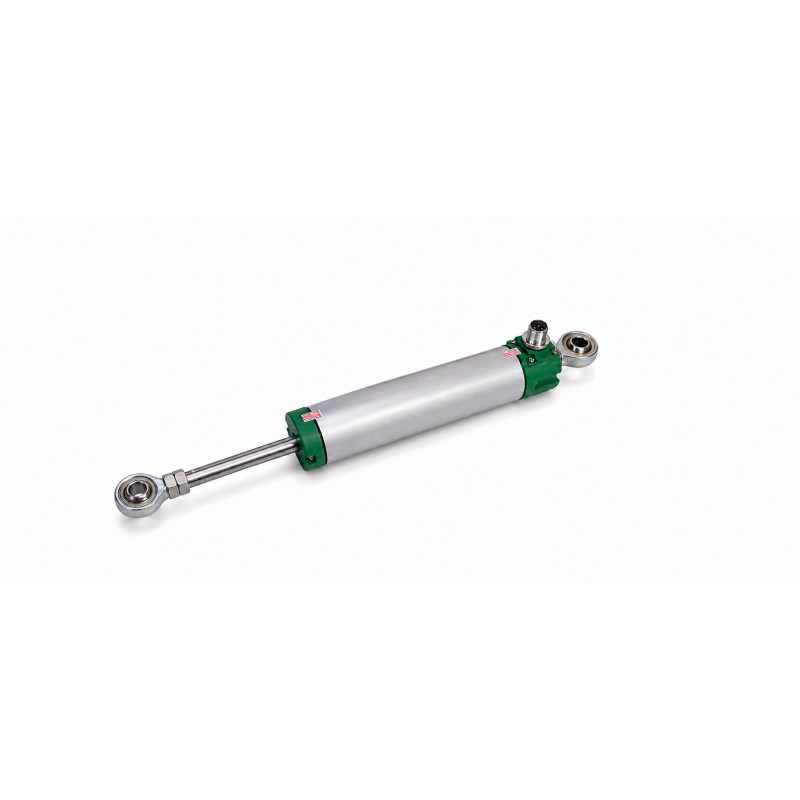

LINEAR TRANSDUCER LBC 75
measurement length: 75mm
Absolute linear transducer
The degree of resolution is 0.01 mm
Potentiometric output
(options: 0-10V and 4-20mA)
Compact build
Straight line measurement, easy to install
Dust-proof, anti-vibration, durable
High repeat accuracy
Corrosion resistant stainless steel shaft
Technical data LBC series:
|
Range |
50-900 mm |
|
Linear accuracy |
0. 05% / 0. 1% |
|
Resistance value ( ± 10% ) |
5KΩ (50-500 mm) / 10KΩ (600-900mm) |
|
Repeatability accuracy |
0. 01 mm |
|
Mechanical stroke |
Draw |
|
Resolution |
Infinite uninterrupted analysis |
|
Power supply |
24V DC |
|
Maximum allowable working voltage |
36V DC |
|
Current is recommended |
≤10 mA |
|
Output signal |
0-100% given input working voltage (changing with displacement) |
|
Maximum working speed |
10 m/ s |
|
Operating temperature Range |
-60 ºC ~ 150 ºC |
|
Service life |
100 milion movements |
|
Temperature drift coefficient |
<1. 5PPM/ ºC |
|
Vibration coefficient |
IEC68-2-6 : 1982 20g |
Outputs:
LBC resistive output
LBC-V output 0-10 VDC
LBC-A output 4-20 mA
Technical data:
|
Series LBC |
50 |
100 |
130 |
150 |
175 |
200 |
225 |
275 |
300 |
375 |
400 |
450 |
500 |
600 |
750 |
|
|
Measure length |
mm |
50 |
100 |
130 |
150 |
175 |
200 |
225 |
275 |
300 |
375 |
400 |
450 |
500 |
600 |
750 |
|
Mechanical stroke |
mm |
59 |
109 |
139 |
159 |
184 |
210 |
235 |
285 |
310 |
386 |
412 |
463 |
518 |
619 |
772 |
|
Resistance ±20% |
kΩ |
5 |
5 |
5 |
5 |
5 |
5 |
5 |
5 |
5 |
5 |
5 |
5 |
5 |
10 |
10 |
|
Linearity |
±% |
0.1% |
0.1% |
0.05% |
0.05% |
0.05% |
0.05% |
0.05% |
0.05% |
0.05% |
0.05% |
0.05% |
0.05% |
0.05% |
0.05% |
0.05% |
|
Accuracy |
mm |
0.01 |
||||||||||||||
|
Power supply |
V |
24V (max. 36V) |
||||||||||||||
|
Resolution |
infinity |
|||||||||||||||
|
Load resistance |
>100KΩ |
|||||||||||||||
|
Body length (A) |
mm |
185 |
235 |
265 |
285 |
310 |
336 |
361 |
411 |
436 |
512 |
538 |
589 |
644 |
745 |
898 |
|
Size B (between joints) |
mm |
237 |
287 |
317 |
337 |
362 |
388 |
413 |
463 |
188 |
564 |
590 |
641 |
696 |
797 |
947 |
Dimensions:
