Long range laser distance sensor DS80
Security Policy
Delivery Policy
Return Policy
Model: DS Series | DS-80
Measuring frequency: 1000Hz
Data transmission interface:SSl, Ethernet 100 BASE-TX
Laser source: Red laser (visible light)
Measuring distance 80m
Measurement resolution: 0.1 mm
Power supply: DC 9V...30V
Power consumption: 2.4W(MAX)
Protection grade: IP65
|
Distance Sensor Basic information |
|||
|
Models |
DS-80 |
DS-120 |
DS-200 |
|
Measuring range |
80m |
120m |
200m |
|
Typical value of spot size |
100mm(@80m) |
150mm(@120m) |
245mm(@200m) |
|
Measurement accuracy |
±2 mm |
||
|
Repeat accuracy |
1mm |
||
|
Measurement frequency |
1000Hz |
||
|
Measurement resolution |
0.1mm |
||
|
Maximum movement rate |
15m/s |
|
Optoelectronic characteristics |
|
|
Power supply voltage |
DC 9V...30V |
|
Working current |
0.2 A/12V DC |
|
Laser source |
Red laser (visible light) |
|
Power consumption |
2.4W(MAX) |
|
Optoelectronic characteristics |
|
|
Data transmission interface |
SSl、Ethernet 100 BASE-TX |
|
Indicator light |
PWR indicator, MF1/MF2 status, LNK indicator, BUS indicator |
|
Display screen |
OLED screen (128*64 pixels) |
|
Network interface |
M12/4-core/D-type female straight connector |
|
Power supply/SSI interface |
M12/8-core/A-type male straight connector |
|
Ambient light resistance |
≤100,000lx |
|
Working environment temperature |
-10℃~+55℃ |
|
Storage temperature |
-30℃~+75°C |
|
Humidity |
<80% |
|
Protection level |
IP65 |
|
Dimensions |
123*69.5*90 mm |
|
Weight |
600g (without wire) |

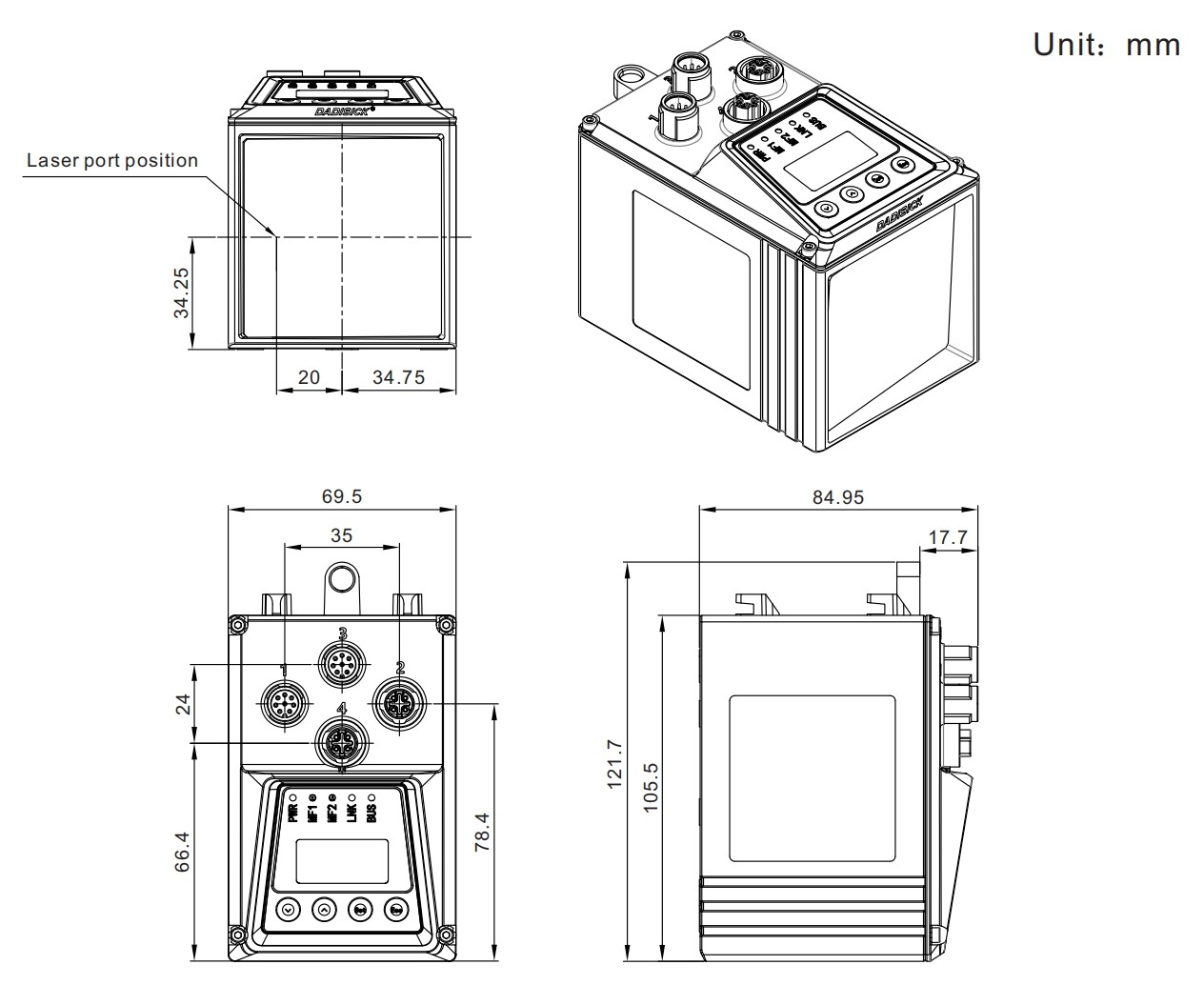

Dimensions:

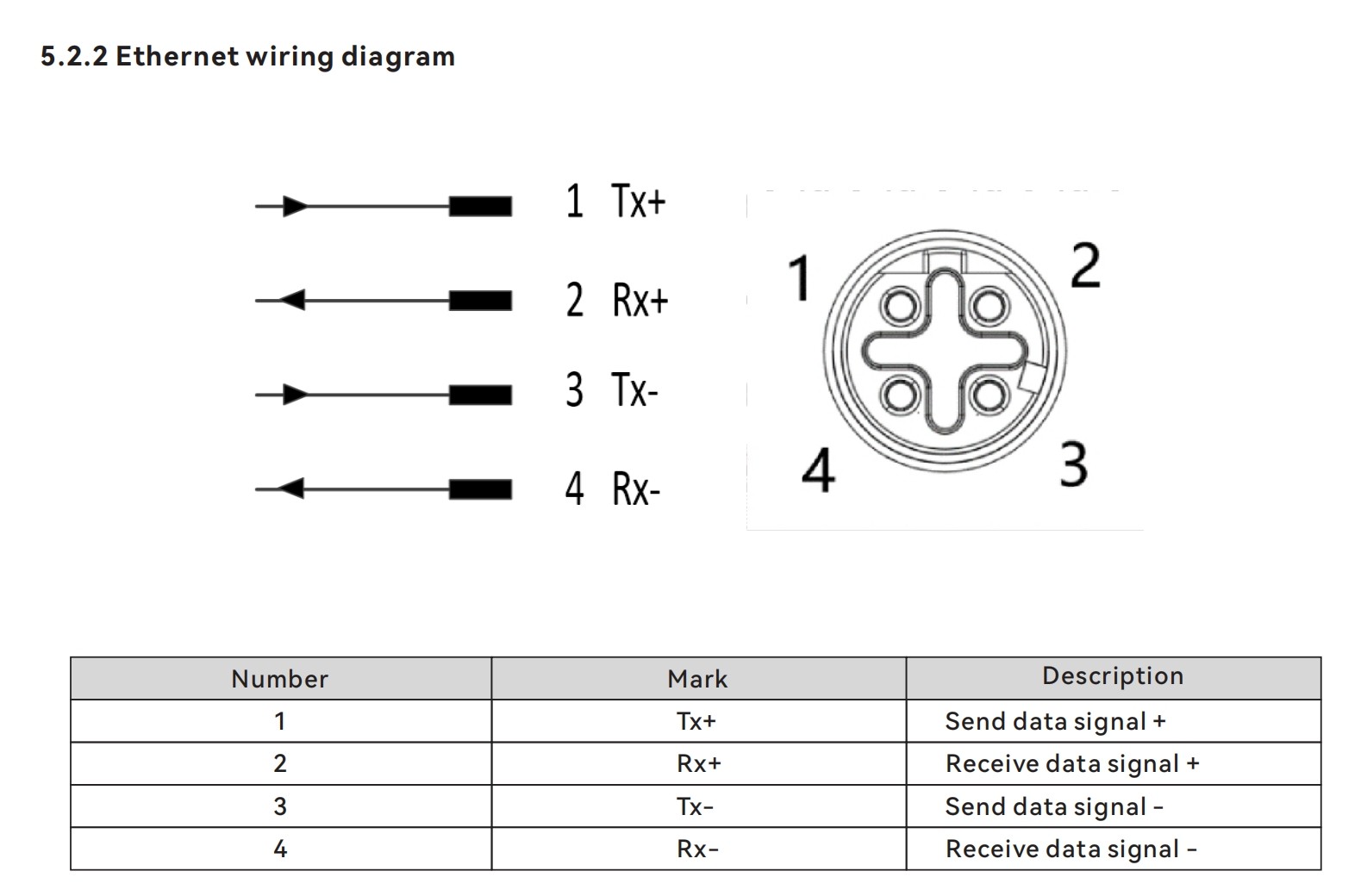

Wiring diagram:
