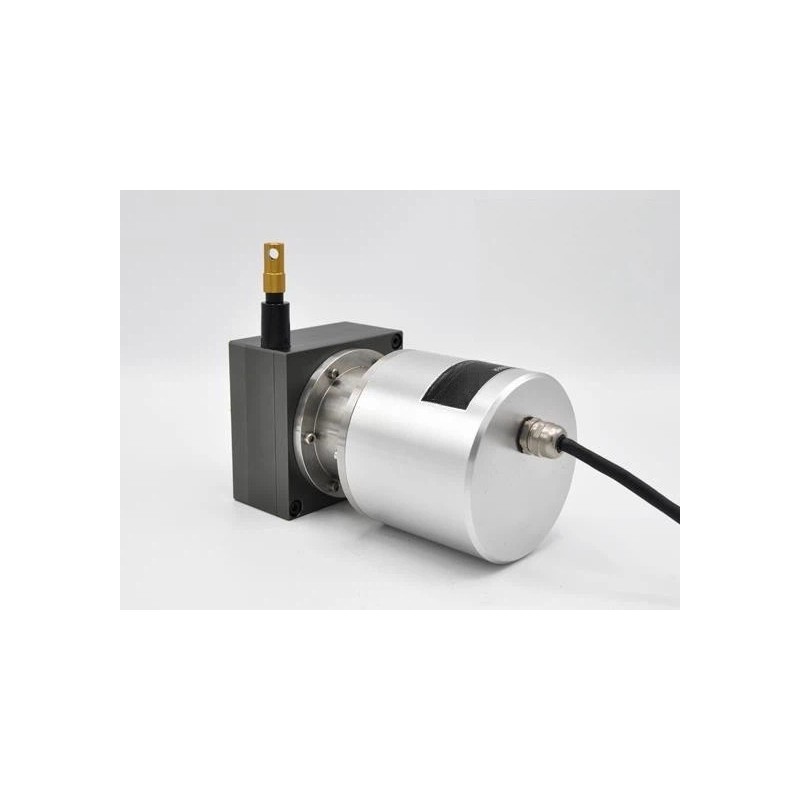

Waterproof, submersible draw-wire encoder MWL-60 1000
Security Policy
Delivery Policy
Return Policy
Technical specifications:
Working range: 0~1000mm
Output signal: resistive, 4-20mA, 0-5V, 0-10V
Resolution: 0.006/0.025/0.03/others
Linear accuracy: 0.05%FS
Repeatability: 0.01%
Maximum speed: 1m/s~35m/s
Cable length: 1m, 2m, 4m, most convincing
Steel wire: highly flexible plastic-coated steel wire
Output wire tension: 10~50N
Lifespan: 1 million
Working voltage: 5V,5-24V,10-30V
Working temperature: -25-85℃
Shell material: aluminum alloy/stainless steel/titanium alloy
Protection level: Completely immersion in water
Immersion: up to 30m
Not for use in salt water
Dimensions:
