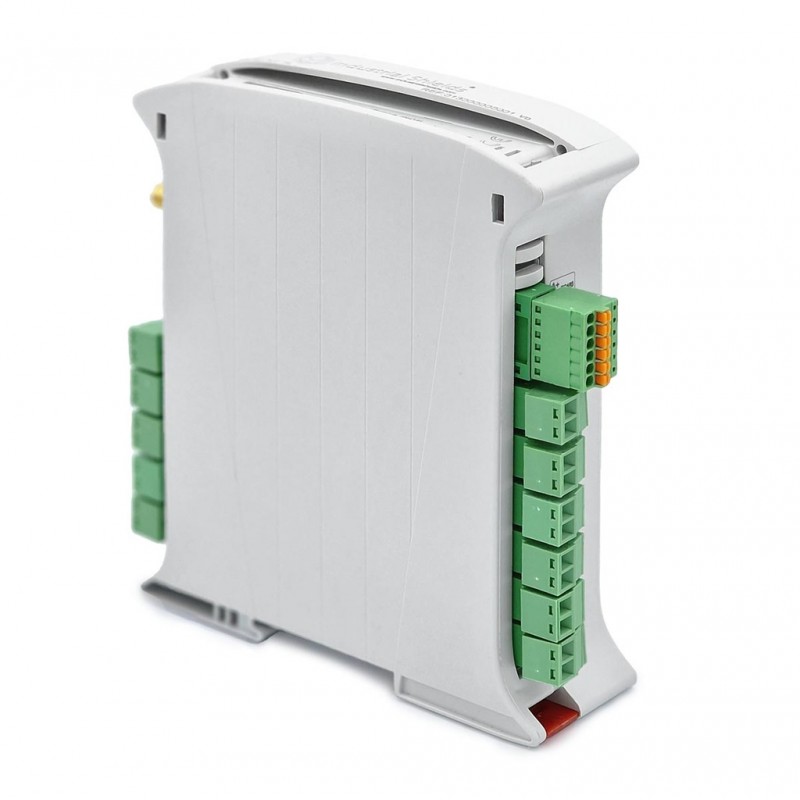

ESP32 PLC 14 CORE

The ESP32 PLC 14 combines power and connectivity for advanced industrial applications.

With dual core, Ethernet, WiFi and RS485, it offers maximum flexibility.

Programmable with Arduino IDE, it allows local (µUSB) and remote (Ethernet) programming, ensuring real-time monitoring and optimized integration into any automation system.

9x Inputs
2x Analog - Digital
7x Digital isolated

5x Outputs
4x Digital isolated
1x Relay

Communications: Ethernet, Wifi & BLE, RS485(HD), I2C and options like NB-IoT, GPRS, 2G, 3G, 4G, LoRA

Industrial Automation Modular Controller

This is the first equipment based on the ESP32 Controller technology designed for a professional use. This Industrial PLC contains several communication ports which provide more flexibility and control.
The ESP32 PLC family offers the possibility to expand up to 127 modules through I2C, which means that you can have until 7100 Inputs / Outputs in Master-Slave connections, additionally to sensors, etc…

Programming Software

This Controller can be programmed using the Arduino IDE platform.

Instantaneous connection and coding

The ESP32 PLC is programmed through the µUSB port. This Controller can also be programed through Ethernet port remotely. This offers and immediate access to program, maintenance and control. You can also continuously monitor the status for all the variables, inputs, outputs, etc. It is compatible with the Ardbox Family, the Ethernet (M-Duino Family) and the Touchberry Pi with instantaneous connection.
