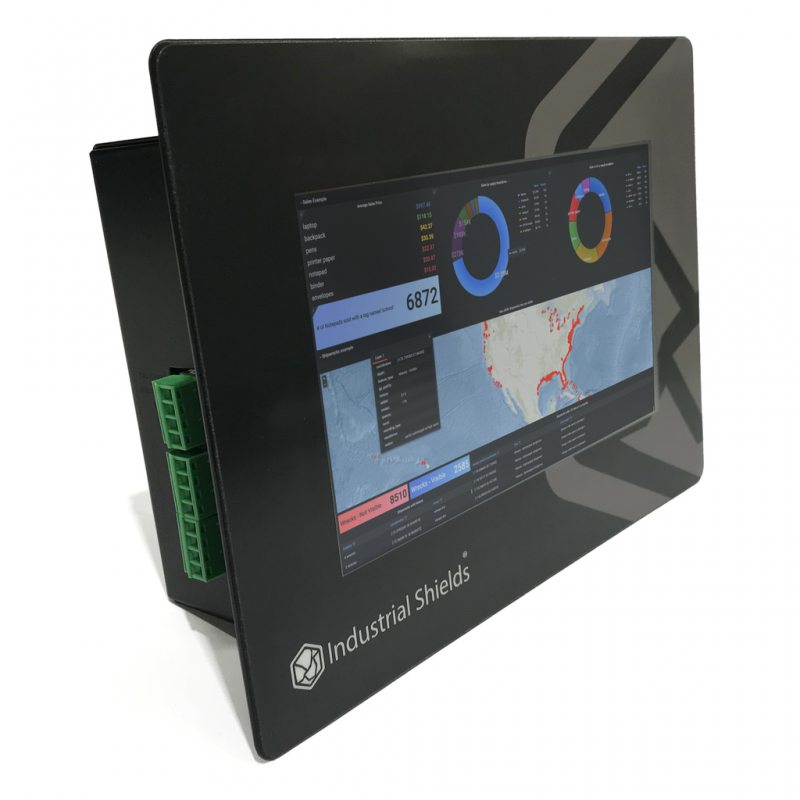

TouchBerry Pi Panel PC 7" FLEX

Its capacitive touchscreen and open-source hardware architecture make it a versatile and scalable solution for industrial projects.

This unit comes with Linux preinstalled and offers optional IP65 front protection, ensuring durability in environments exposed to dust and splashes.

- 7” capacitive touchscreen
- Linux operating system included
- Optional IP65 front protection
- Compact design for electrical cabinets or machinery
- Ideal for HMI and industrial IoT applications

3x Digital Inputs
2x Analog Inputs, configurable by jumpers to be: 0-10Vdc or 4 - 20 mA

5x Digital Outputs

Ethernet, RS485, Serial TTL, RS-232

Key details about the panel PC:

Industrial Automation with Raspberry Pi – Touchberry PI Panel PC

The Touchberry PI Panel PC is a robust and versatile industrial solution, powered by a Raspberry Pi processor and running on a Linux-based OS. Designed for demanding environments, it features an 7” capacitive Full HD IPS TFT display (1024x600), offering 900 nits of brightness, ensuring optimal visibility even in high-light conditions.

Powerful Connectivity & Industrial-Grade I/Os

This industrial Panel PC comes equipped with multiple communication interfaces, including Ethernet, USB (x4), Wi-Fi, Bluetooth, I2C, SPI, and optional RS-485, RS-232, or Serial TTL. With its digital and analog I/Os, the Touchberry PI can replace traditional PLCs in simple automation applications:

• 3 digital inputs
• 2 configurable analog inputs (0-10 VDC or 4-20 mA)
• 5 digital outputs

Advanced Protection & Power Management

To enhance reliability in industrial environments, the integrated UPS with supercapacitors prevents data loss during power failures, allowing a controlled shutdown. It operates on a 12-24 VDC power supply with reverse polarity protection, ensuring stability in diverse applications.

Seamless Industrial Communication & Scalability

The Touchberry PI supports open protocols, enabling smooth integration not only with other Industrial Shields PLCs but also with third-party devices and machinery. Through Ethernet or Wi-Fi, users can remotely monitor and control system parameters, inputs, and outputs.

For complex automation systems, multiple Touchberry PI devices can be interconnected, creating a networked solution for full production plant supervision and real-time data analysis.

Built for Industrial Environments

• Operating temperature: 0°C to 45°C
• Vibration resistance: Up to 50 m/s² (IEC-60068-2-27:2008)
• Dimensions: 22.0 x 15.5 x 6.7 cm
• Optional IP65 protection for added durability

With its powerful hardware, flexible connectivity, and rugged design, the Touchberry PI Panel PC is the perfect choice for industrial automation, data monitoring, and control applications.

CPU

Quad-Core ARM Cortex - A72 1.5GHz

GPU

Broadcom VideoCore VI, OpenGL ES
3.0, MPEG-2 and VC-1(license)
1080p30 H.265 (4kp60 decode),
H264 (1080p60 decode, 1080p30
encode)

USB

(2) x 2.0

(2) x 3.0

Storage

SD / MMC / SDIO slot

Network Com

Gigabit Ethernet – Serial TTL

GPIO Voltage

Inputs: 5 - 24 Vdc

Outputs: 7,5 - 24 Vdc

10x Input/Output

(3) x Digital Inputs

(2) x Analog Inputs, configurable by jumpers

  0 - 10 Vdc

  4 - 20 mA

(5) x Digital Outputs

OS

Linux
