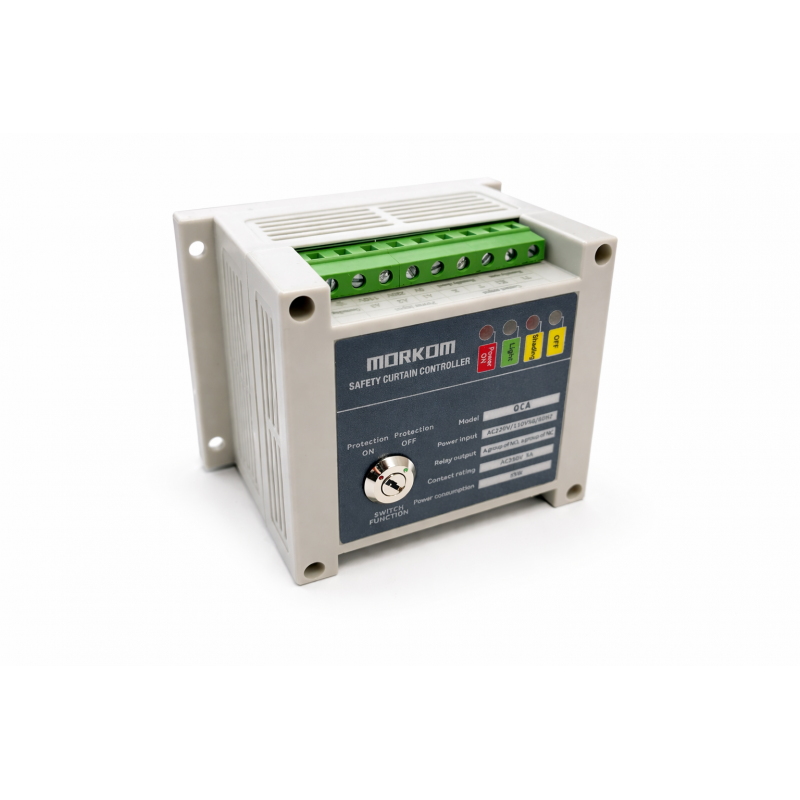

Light curtain safety controller M-QCA

Work temperature

-10°C~55°C

Storage temperature

-40°C~70°C

Work humidity

35%RH~85%RH

Storage humidity

35%RH~95%RH

Protection class

IP20

Dimensions

115x90x73mm

Power supply

AC100V~230V±15% 50/60 Hz or DC24V±10%

Power consumption

≤5W

Output form

One set normally open and one set normally closed

Output form

Two groups of normally open and two groups of normally

closed (special order required)

Output contact capacity

5A，AC250V/DC30V(resistive load)

Response time

whole machine (including light curtain) shall not exceed

Insulation resistance

>100Ω

Dielectric strength

AC1500V，60s no breakdown or flashover

Relay life

≥ 1 000 000
