How Does a Safety Relay Work?

How Does a Safety Relay Work?

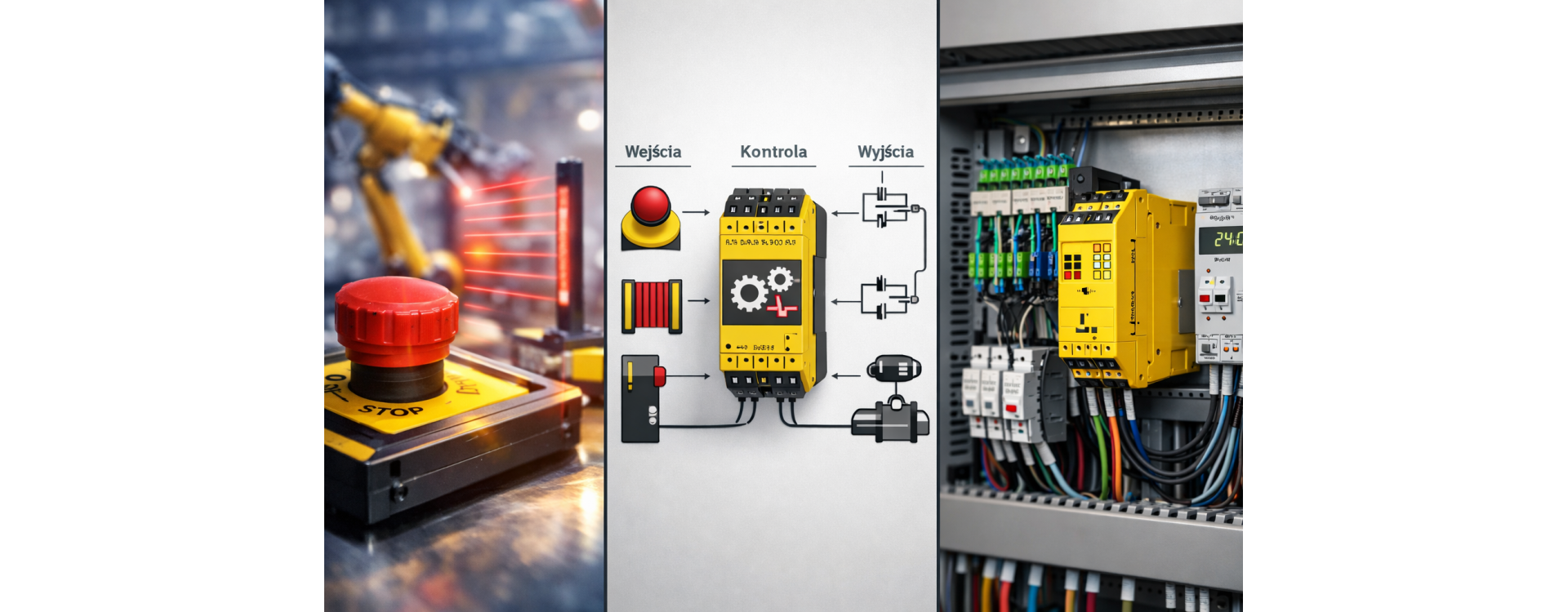

The operating principle of a safety relay is based on continuous monitoring of safety circuits.

The process can be divided into several stages.

1. Monitoring Input Signals

The safety relay receives signals from safety devices. Usually two independent channels are used.

This design significantly increases system reliability.

2. Fault Detection

The relay continuously checks whether the signals are correct.

It can detect:

• short circuits

• broken wires

• synchronization errors

• contact failures

3. Controlling Safety Outputs

When the system is operating correctly, the safety relay activates the safety outputs.

These outputs typically use force-guided contacts that control:

• contactors

• motor drives

• pneumatic valves

• machine actuators

4. Emergency Machine Stop

If a dangerous condition occurs, the relay immediately deactivates its outputs.

This causes:

• power disconnection

• machine stop

• transition to a safe state

⸻

Why Are Safety Relays Important?

Safety relays are essential components of modern industrial machines.

Their key advantages include:

• high safety level

• fast reaction time

• reliable diagnostics

• compliance with safety standards

They significantly reduce the risk of accidents in industrial environments.

⸻

Where Are Safety Relays Used?

Safety relays are used in many industrial applications:

• manufacturing lines

• industrial robots

• packaging machines

• hydraulic presses

• CNC machines

• automated production cells

They are one of the fundamental elements of any machine safety system.

⸻

Summary

Safety relays play a critical role in protecting machine operators and equipment.

They constantly monitor safety devices and ensure that machines stop immediately when a hazardous situation is detected.

Because of their reliability and simplicity, safety relays remain widely used in industrial automation systems.
