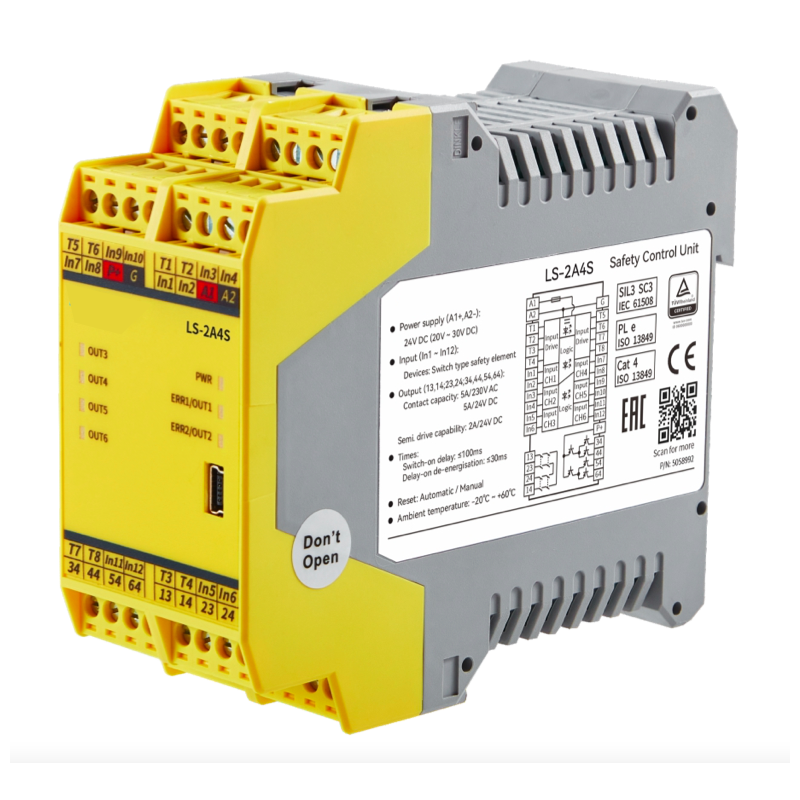

Safety relay LS-2A4S
Security Policy
Delivery Policy
Return Policy
Configurable control logic
Supports a variety of safety input signals
LS-2A4S is a configurable safety control module that suppose a variety of switch-type safety element inputs (such as emergency stop buttons, safety doors, two-hand buttons, etc.), and supports up to 6 safety element inputs, 2 relay safety outputs and 4 semiconductor outputs. It can use configuration software to set safety control logic to meet a variety of on-site application requirements.
|
Product model |
|
|
Safety relay |
LS-2A4S |
|
Certificate |
PLe, Cat.4, SIL3 |
|
Power supply characteristics |
|
|
Supply voltage |
20V~30V DC |
|
Current consumption |
≤110mA (24V DC) |
|
Input characteristics |
|
|
Number of channels |
6 |
|
Input current |
≤50mA (24V DC) |
|
Wire resistance |
≤15Ω |
|
Input devices |
Emergency stop, safety door, safety light curtain, safety carpet, two-hand button, door magnetic switch, reset button |
|
Relay output characteristics |
|
|
Number of contacts |
2NO |
|
Contact material |
AgSnO2 |
|
Contact fuse protection |
10A fast; 6A slow |
|
Switching capacity |
5A/250V AC; 5A/24V DC |
|
Semiconductor output characteristics |
|
|
Number of outputs |
4SO |
|
Capacity |
2A (24V DC) |
|
Time characteristics |
|
|
Pull-in buffer time |
≤100ms |
|
Release buffer time |
≤30ms |
|
Recovery time |
≤100ms |
|
Short power interruption |
20ms |
|
Environmental characteristics |
|
|
Electromagnetic compatibility |
EN60947, EN61000-6-2, EN61000-6-4 |
|
Vibration |
Frequency: 10Hz~55Hz; Amplitude: 0.35mm |
|
Operating temperature |
-20℃~+60℃ |
|
Storage temperature |
-40℃~+85℃ |
|
Relative humidity |
10%~90% |
|
Insulation characteristics |
|
|
Overvoltage level |
Ⅲ |
|
Pollution level |
2 |
|
Rated insulation voltage |
250V AC |
|
Rated impulse voltage |
6000V (1.2/50us) |
|
Insulation strength |
1500V AC, 1min |
|
Electrical clearance and creepage distance |
In accordance with EN 60947-1 |
|
Certification |
|
|
Safety integrity level |
SIL3 |
|
Performance level |
Ple |
|
Safety category |
Cat.4 |

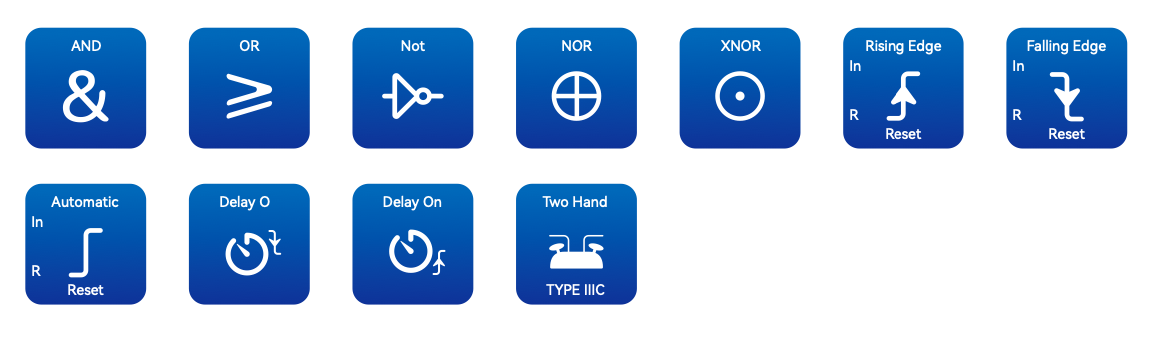

Configurable logic function blocks:
