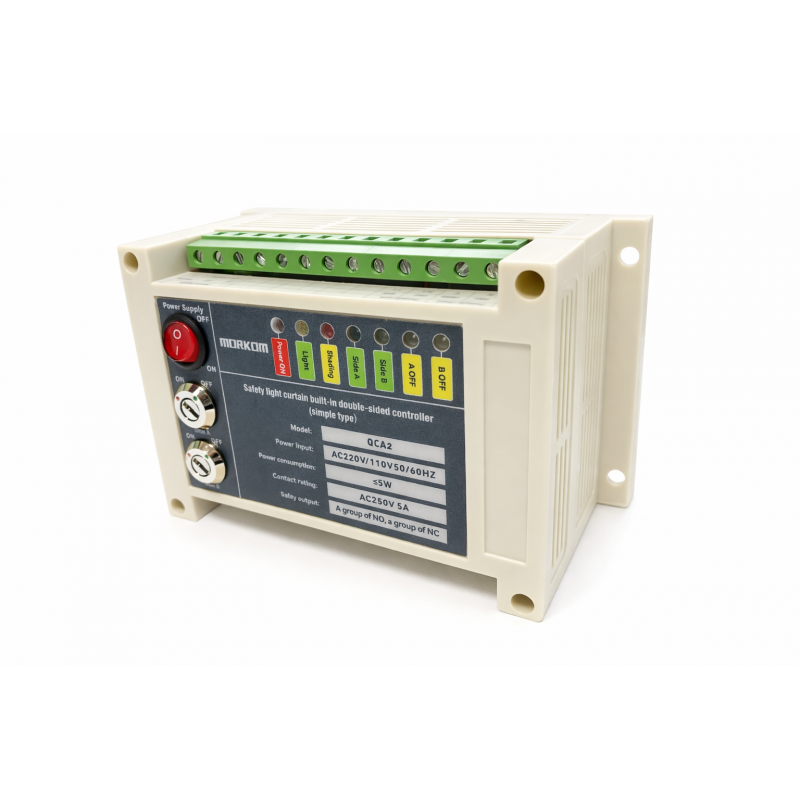

Light curtain safety controller M-QCA2
Security Policy
Delivery Policy
Return Policy
Technical data:
|
Work temperature |
-10°C~55°C |
|
Storage temperature |
-40°C~70°C |
|
Work humidity |
35%RH~85%RH |
|
Storage humidity |
35%RH~95%RH |
|
Protection class |
IP20 |
|
Dimensions |
145x90x73mm |
|
Power supply |
AC100V~230V±15% 50/60 Hz or DC24V±10% |
|
Power consumption |
≤5W |
|
Output form |
One set normally open and one set normally closed |
|
Output form |
Two groups of normally open and two groups of normally closed (special order required) |
|
Output contact capacity |
5A，AC250V/DC30V(resistive load) |
|
Response time |
whole machine (including light curtain) shall not exceed |
|
Insulation resistance |
>100Ω |
|
Dielectric strength |
AC1500V，60s no breakdown or flashover |
|
Relay life |
≥ 1 000 000 |
Connection scheme:
