Safety light curtain M-QT4-32-15-465mm

M-QT4-32-15-465
Rating

Safety light curtain M-QT4-32-15-465mm


protection high: 465mm

Output
741.10 €
Quantity



Security Policy



Delivery Policy



Return Policy

Description

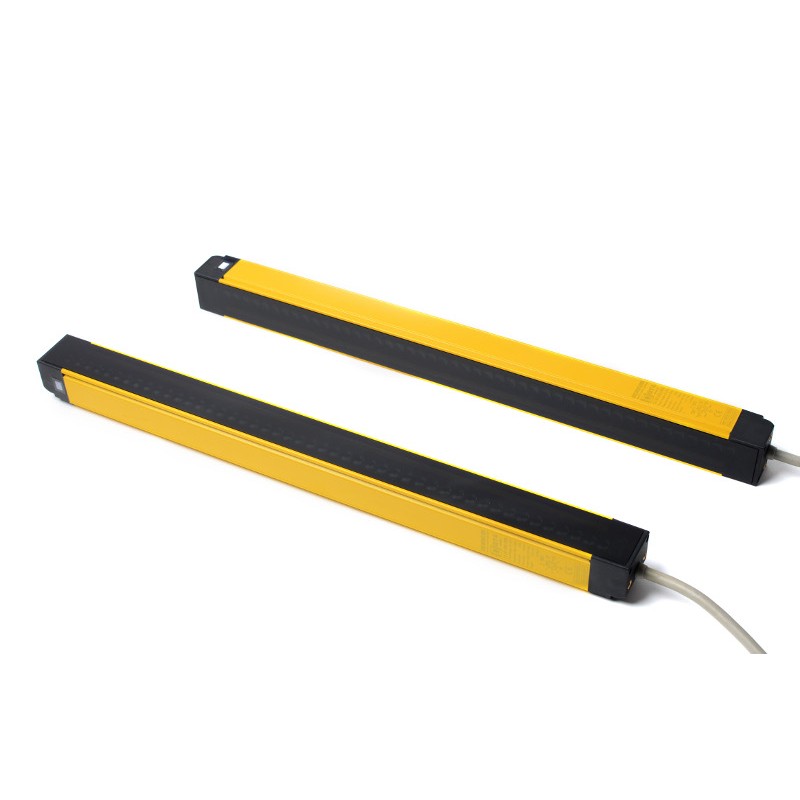

Safety light curtain M-QT4-32-15-465mm



Specification:

Beam number

32

Beam pitch

15mm

Protect high

465mm

Total length

498.2mm

Detect distance

0.3-3m, 0.3-6m




Main characteristics series M-QT4:

Resolution 7.5mm, 15mm, 30mm
Detection distance 0.3-3m, 0.3-6m
Response time 20ms
Consumption current 200mA
Wavelength 850nm
Type of light infrared light (NIR), invisible
Proteciotn class IP65
Housing material metal, aluminium
Upper and lower cover materials ABS reinforced nylon PA66+30% GF
Power supply 24VDC


Output:

Number of safe output circuits (OSSD) 2
Minimum switch voltage HIGH 18V
Minimum switch voltage LOW 2.5V
Typical switching voltage 22.5V
Voltage type DC
Maximum current load 380mA
Safety switch output 1 pin 4, OSSD1
Switching element transistor PNP
Safety switch output 2 pin 6, OSSD2
Switching element transistor PNP



  • reset function (prevents accidental machine start)
  • lock reset function
  • bypass and override function
  • fixed shielding and floating shielding

Dimensions:
