Safety light curtain M-QT4-31-7.5-225mm
protection high: 225mm
Security Policy
Delivery Policy
Return Policy
Safety light curtain M-QT4-31-7.5-225mm
Specification:
|
Beam number |
31 |
|
Beam pitch |
7.5mm |
|
Protect high |
225mm |
|
Total length |
258.2mm |
|
Detect distance |
0.3-3m, 0.3-6m |
Main characteristics series M-QT4:
| Resolution | 7.5mm, 15mm, 30mm |
| Detection distance | 0.3-3m, 0.3-6m |
| Response time | 20ms |
| Consumption current | 200mA |
| Wavelength | 850nm |
| Type of light | infrared light (NIR), invisible |
| Proteciotn class | IP65 |
| Housing material | metal, aluminium |
| Upper and lower cover materials | ABS reinforced nylon PA66+30% GF |
| Power supply | 24VDC |
Output:
| Number of safe output circuits (OSSD) | 2 |
| Minimum switch voltage HIGH | 18V |
| Minimum switch voltage LOW | 2.5V |
| Typical switching voltage | 22.5V |
| Voltage type | DC |
| Maximum current load | 380mA |
| Safety switch output 1 | pin 4, OSSD1 |
| Switching element | transistor PNP |
| Safety switch output 2 | pin 6, OSSD2 |
| Switching element | transistor PNP |

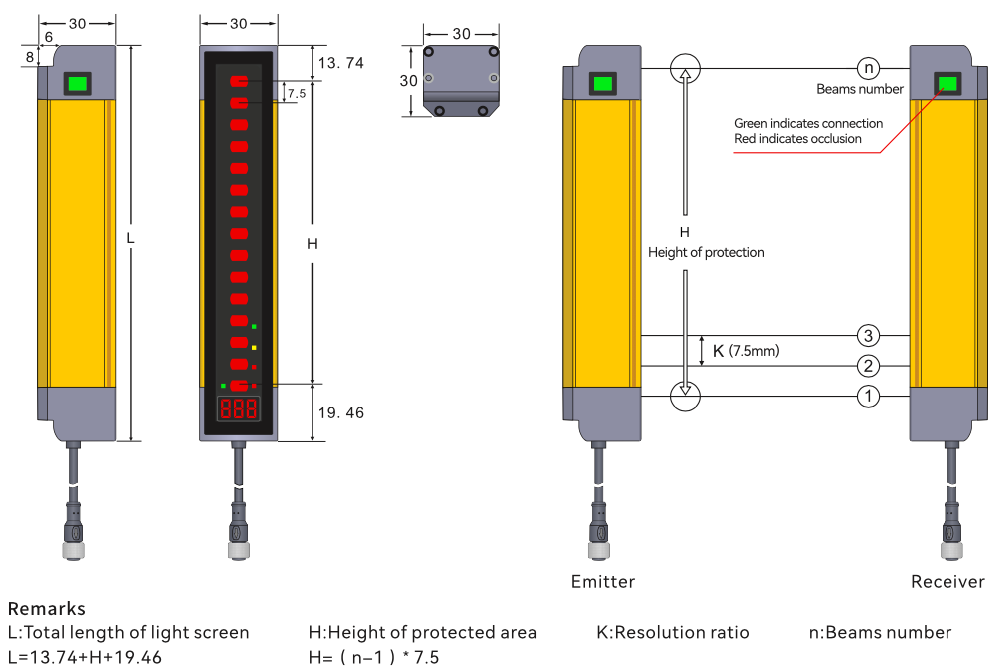

Dimensions:
