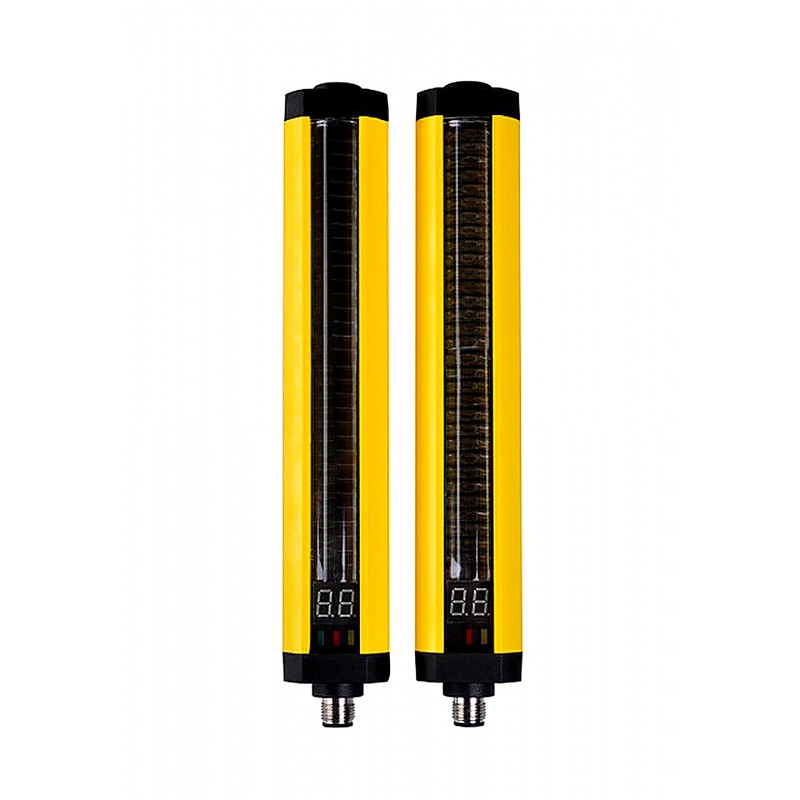

Safety light curtain M-QM-120-2.5-297.5mm
protection high: 297.5mm
Security Policy
Delivery Policy
Return Policy
| Model | M-QM-120-2.5-297.5 |
| Height of protection | 297.5mm |
| Total height | 354.5mm |
| Resolution | 2.5mm |
| Number of beams | 120 |
General characteristics of the M-QM series:
| Curtain resolution | 2.5 mm, 5 mm, 10 mm, 20mm, 40 mm, 80 mm |
| Detection accuracy | 3.75 mm, 6.5 mm, 15 mm, 25 mm, 45 mm, 85 mm |
| Number of beams | 4-320 |
| Detection range | 30 ~ 1000 mm (res. 2.5mm), 30 ~ 3000 mm, 30 ~ 6000 mm, 30 ~ 25000 mm |
| Response time | ≤15 ms |
| Ambient light resistance | 10,000 lux (angle of incidence 5°) |
| Dimensions | 36mm x 36mm x L mm (L is the length of the transmitter/receiver) |
| Protection class | IP65 |
| Controller | QCA, QCA2 |
| Supply voltage | DC12/24 V |
| Blanking function | Floating blanking |
| Power consumption | ≤200 mA |
| Output type | PNP NC, PNP NO, NPN NC, NPN NO, 1-10V, 4-20mA |
| Light source | Modulated infrared LED |
| Connection method | Round aviation socket, with special connection cable, 7-wire transmitter, 7-wire receiver |
| Housing material | Aluminum alloy, End cap: ABS reinforced nylon |
| Ambient temperature | Operation: -10 ~ +40°C, Storage: -25 ~ +55°C |
| Ambient humidity | Operation: 35~85% RH, Storage: 35~95% RH |
Certificates:
CE TUV: No.E8A 104143 0001 Rev.00
ROHS: No. BSTDG180811032001CC
CE TYPE 4: No. ICR Polska/VC/HS221222
UL: No. 4790783741.1-S
ISO: No. HIC180327. GB/T 19001-2016/ISO 9001:2015
Cat 4 Pld
Dimensions:
L= 98mm + protection height
